Wall Plates


  Photo Description Datasheet

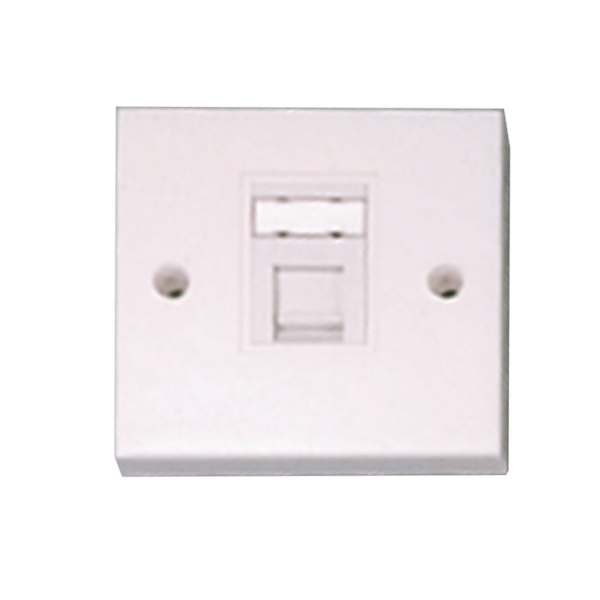

1-Port, Shuttered

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-1001)

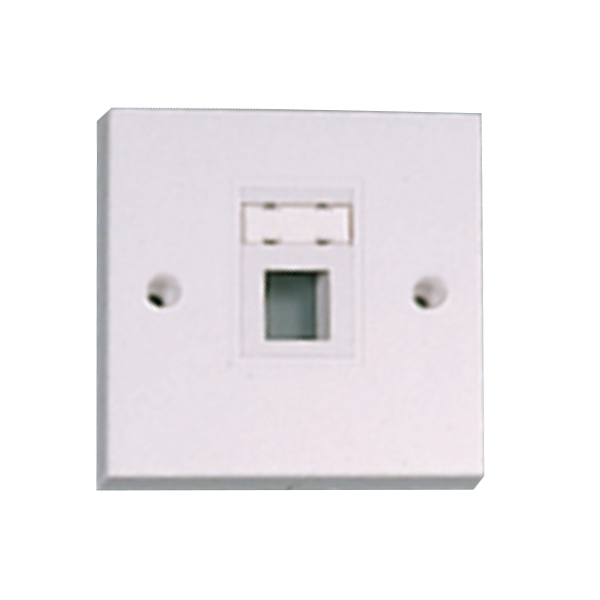

1-Port, Non-Shuttered

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-2002)

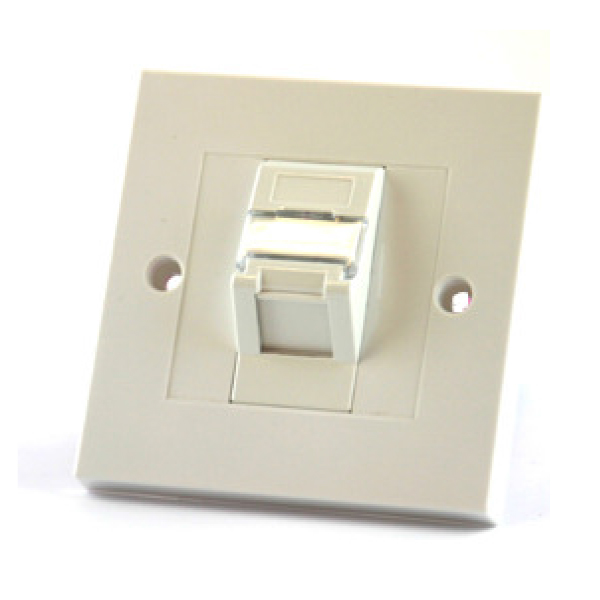

1-Port, Shuttered, Angle

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-1004)

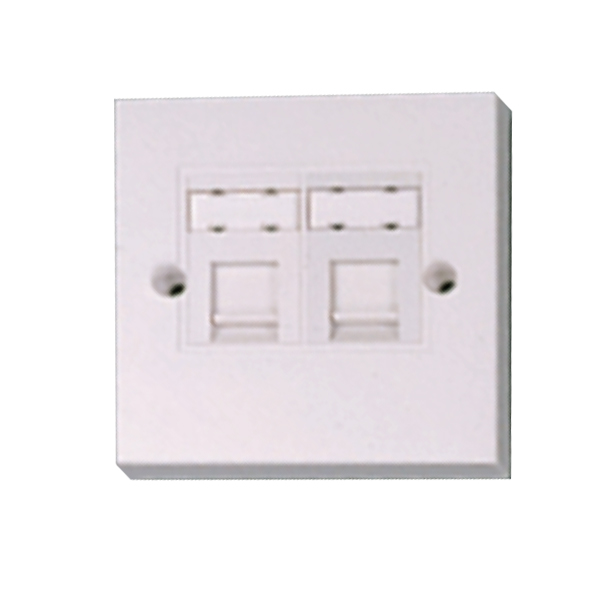

2-Port, Shuttered

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-1002)

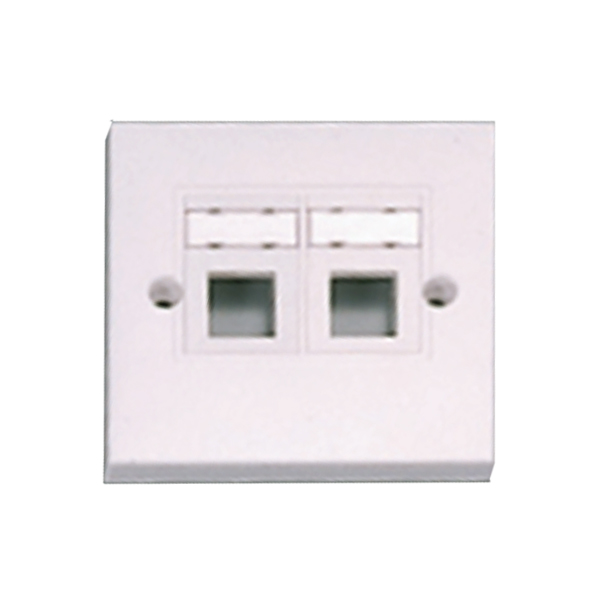

2-Port, Non-Shuttered

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-2004)

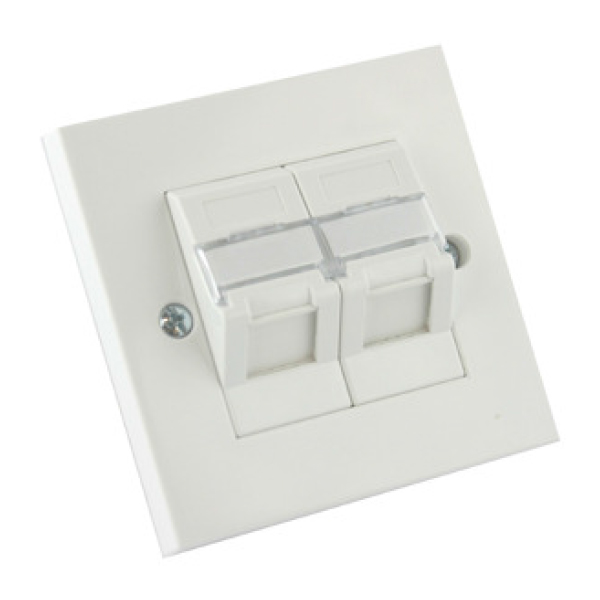

2-Port, Shuttered, Angle

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with series I snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification

(52-08-1003)

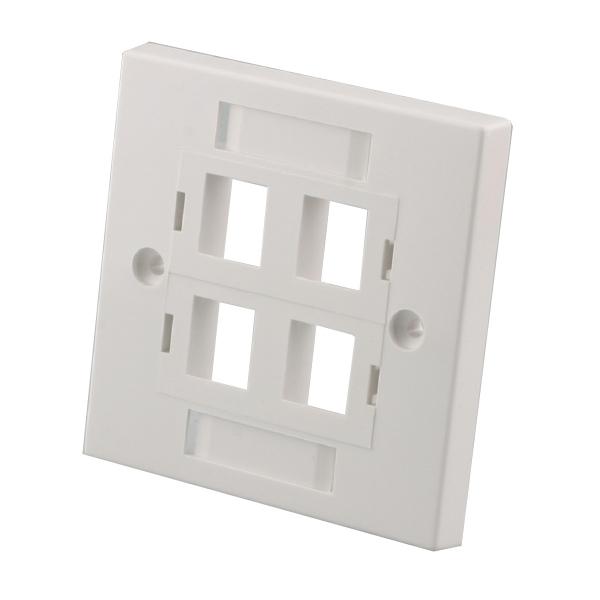

4-Port, Non-Shuttered

Key Features:
-Fulfill the most complicated station installation requirements
-Write-on designation label with holder for different system or station identification

(52-08-0120)

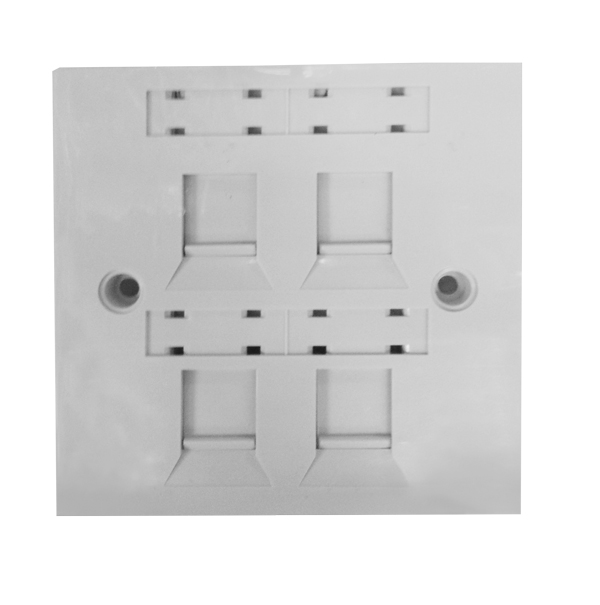

4-Port, Shuttered

Key Features:
-Fulfill the most complicated station installation requirements
-Write-on designation label with holder for different system or station identification
NO PDF

(52-08-0007)

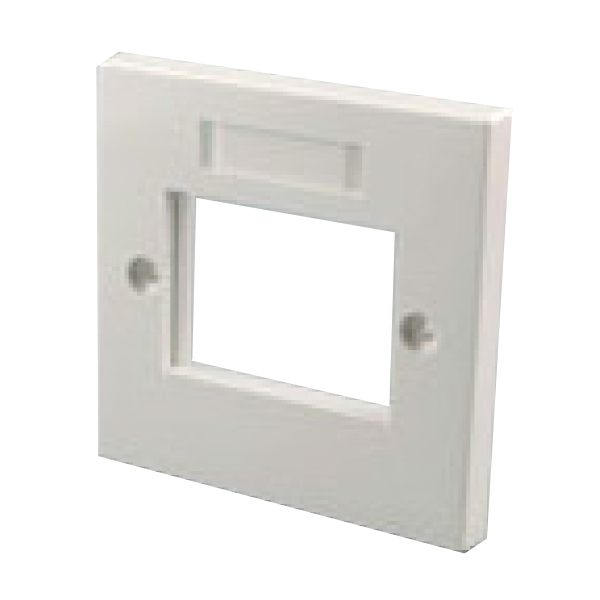

Snap-In Module Wall Plate For one 2-Port

Key Features:
-85mmx85mm(comply with British standard size)
-designed for use with snap-in modules for different configuration of jacks and connectors
-Write-on designation label with holder for different system or station identification
-Snapped out of the front of wall plate easliy

(52-08-0015)

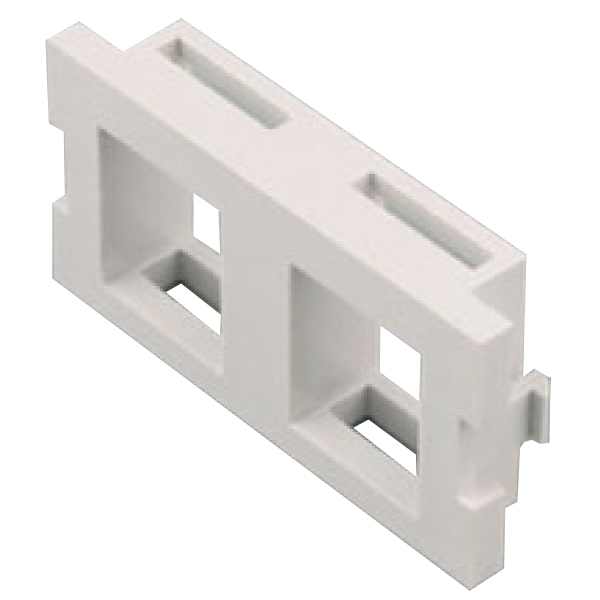

Snap-In Module Wall Plate For two 2-Port

Key Features:
-1/2"blank,1"flat modules and 1-1/2" height 45 degree angled modules
-Series II wall plate opening can accommodate three 1 flat or two 1-1/2" angled module
-Surface mount boxes can accommodate only 1" flat module
-Use 1/2" blank module as spacer when opening uses one 1" and one 1-1/2" modules

(52-08-0113)




* All photos and specifications are subject to change without notice.
