Modular Jacks


  Photo Description Color Datasheet

Cat.3 6P6C RJ12 Jack
0


Cat.3 6P6C RJ12 Jack

Key Features:
-Contacts are phosphor bronze plated with 50 microinches hard gold
-110 IDC connector provides vertical termination for 22-26 AWG solid wires41
-Supplied with two plastic strain relief caps for IDC connector
-Large selection of colors, provides many options of color coded designation port
-Polycarbonate, 94Vo rated

Standards:
TIA/EIA 568-A-5,FCC Part 68,UL,cUL and DELTA EC Listed

0












(52-08)

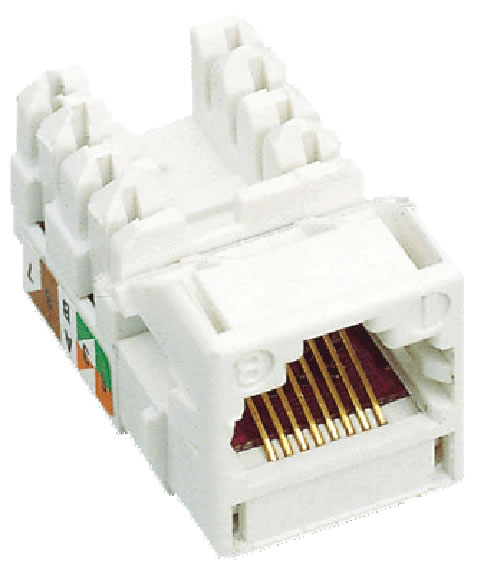

Cat.5E RJ45 Jack UTP

Key Features:
-Contacts are phosphor bronze plated with 50 microinches hard gold
-110 IDC connector provides vertical termination for 22-26 AWG solid wires41
-Supplied with two plastic strain relief caps for IDC connector
-Large selection of colors, provides many options of color coded designation port
-Polycarbonate, 94Vo rated

Standards:
TIA/EIA 568-A-5,FCC Part 68,UL,cUL and DELTA EC Listed

0












(52-08)

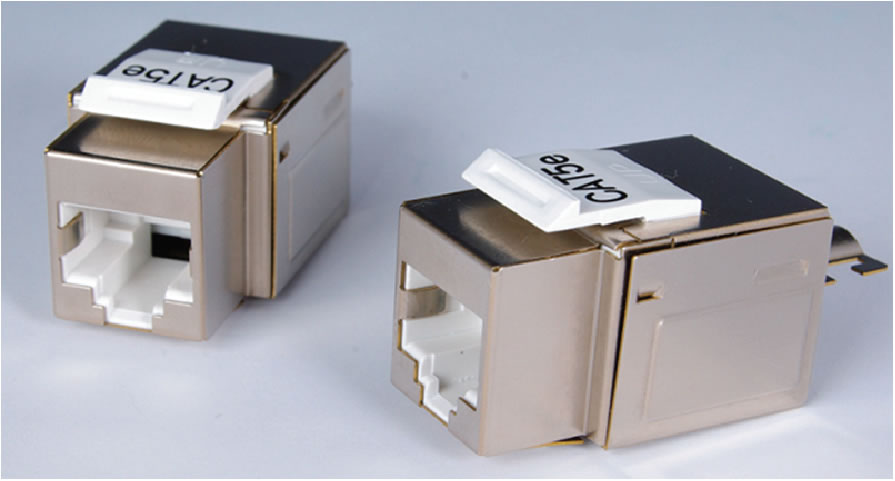

Cat.5E RJ45 Jack Shielded

Key Features:
-Contacts are phosphor bronze plated with 50 microinches hard gold
- 110 IDC connector provides vertical termination for 22-26 AWG solid wires
-2-piece shielded cover designed for easy cable installation and protection from external radiated noise

Standards:
TIA/EIA 568-A-5 and ISO11801 Class D Category 5E standard

/



(52-08-0508)



Cat.6 RJ45 Jack UTP Tool-less

Key Features:
-Cat. 6 connecting hardware approved by Delta EC
-UL & cUL listed
-No additional tool required for termination
-Contacts are phosphor bronze plated with 50 micro inches hard gold
-Dual T568A & T568B wiring
-Complies with FCC Part 68
-Polycarbonate, 94V0 rated

Standards:
Class E, TIA/ EIA 568B 2.1 and ISO 11801 2nd edition

0


(52-08-6001)

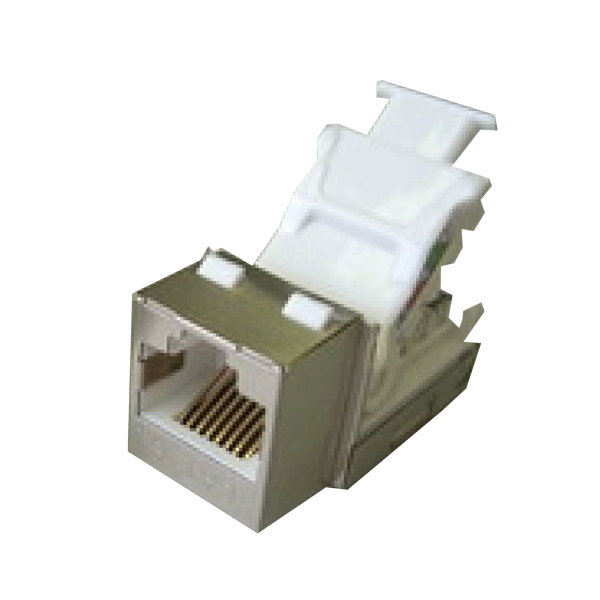

Cat.6 RJ45 Jack Tool-less Shielded

Key Features:
-Cat. 6 connecting hardware approved by Delta EC
-UL & cUL listed
-No additional tool required for termination
-Contacts are phosphor bronze plated with 50 micro inches hard gold
-Dual T568A & T568B wiring

Standards:
Class E, TIA/ EIA 568B 2.1 and ISO 11801 2nd edition

/



(52-08-6008)



52-08-1020
Cat.6 Inline Coupler (RJ45 I-Joint)

Key Features:
-Connect two Cat. 6 patch cable together to make a longer cable
-Compatible with all Cat.6 patch cable

0


(52-08-1020)



52-08-1020
Cat.6 Inline Coupler, Shielded (RJ45 I-Joint)

Key Features:
-Panel Mount Type








* All photos and specifications are subject to change without notice.
